Model card for CLIP-convnext_xxlarge-laion2B-s34B-b82K-augreg-soup

Table of Contents

  1. Model Details
  2. Uses
  3. Training Details
  4. Evaluation
  5. Acknowledgements
  6. Citation

Model Details

Model Description

A series of CLIP ConvNeXt-XXLarge (a custom timm ConvNeXt size) models trained on LAION-2B (english), a subset of LAION-5B, using OpenCLIP.

Model Dataset Resolution AugReg Top-1 ImageNet Zero-Shot (%)
convnext_xxlarge.laion2b_s34b_b82k-augreg LAION-2B 256x256 RRC (0.33, 1.0), RE (0.35), SD (0.1) 79.1
convnext_xxlarge.laion2b_s34b_b82k-augreg-rewind LAION-2B 256x256 RRC (0.3, 1.0), RE (0.4), SD (0.1) 79.3
convnext_xxlarge.laion2b_s34b_b82k-augreg-soup LAION-2B 256x256 N/A 79.4
RRC = Random Resize Crop (crop pcts), RE = Random Erasing (prob), SD = Stochastic Depth (prob) -- image tower only

The core training run was performed in pieces over a period of ~ 2 months. The global batch size for the core run was 81920. The last ~10% of training was re-done at a 95744 global batch size w/ higher LR and aug than original finish. The two were averaged together in a 'soup'. See more details in Training Details.

Goals:

  • Push the size of largest convolutional CLIP image tower into the performance range of ViT-g to ViT-G w/ improved image size scaling for downstream use.

Firsts:

  • Largest released ConvNeXt model pretrained (847M params w/ 198 GMAC and 125 MActs @ 256x256 for image)
  • A non-ViT image tower CLIP model (with no previous image tower pretrain) achieving > 79% ImageNet top-1 zero-shot

The models utilize:

  • the timm ConvNeXt-XXLarge model (convnext_xxlarge) as the image tower
  • a standard projection at end of image tower
  • a text tower with same size (with 1024, heads 16, depth 24) as ViT-H-14 and ViT-g-14 models

The models are trained at 256x256 image resolution. The size of the combined image + text CLIP model is 1.2B params w/ 222 GMAC and 146 MActs. At 256x256, the ConvNext-XXLarge sits just above a ViT-H-14 CLIP configuration in FLOPS and params while being lower in activation counts. It is well under both g-14 and G-14 while being between them in capabilities.

model image_size embed_dim gmacs macts mparams image_gmacs image_macts image_mparams text_gmacs text_macts text_mparams
ViT-H-16 224 1024 150.96 122.01 986.26 127.4 100.81 632.23 23.57 21.2 354.03
ViT-H-14 224 1024 190.97 160.61 986.11 167.4 139.41 632.08 23.57 21.2 354.03
ViT-L-14-336 336 768 197.76 278.19 427.94 191.1 270.24 304.29 6.66 7.95 123.65
convnext_xxlarge 256 1024 221.66 145.66 1200.58 198.09 124.45 846.54 23.57 21.2 354.03
RN50x64 448 1024 276.8 249.73 623.26 265.02 239.13 420.38 11.78 10.6 202.88
ViT-g-14 224 1024 290.74 213.84 1366.68 267.18 192.64 1012.65 23.57 21.2 354.03
convnext_xxlarge_320 320 1024 333.08 215.66 1200.58 309.52 194.46 846.54 23.57 21.2 354.03
ViT-H-14-336 336 1024 414.53 428.74 986.52 390.97 407.54 632.49 23.57 21.2 354.03
ViT-bigG-14 224 1280 532.92 310.71 2539.57 483.96 275.37 1844.91 48.96 35.34 694.66

Model training done by Ross Wightman across both the stability.ai cluster and the JUWELS Booster supercomputer. See acknowledgements below.

Uses

As per the original OpenAI CLIP model card, this model is intended as a research output for research communities. We hope that this model will enable researchers to better understand and explore zero-shot, arbitrary image classification. We also hope it can be used for interdisciplinary studies of the potential impact of such model.

The OpenAI CLIP paper includes a discussion of potential downstream impacts to provide an example for this sort of analysis. Additionally, the LAION-5B blog (https://laion.ai/blog/laion-5b/) and upcoming paper include additional discussion as it relates specifically to the training dataset.

Direct Use

Zero-shot image classification, image and text retrieval, among others.

Downstream Use

Image classification and other image task fine-tuning, linear probe image classification, image generation guiding and conditioning, among others.

Out-of-Scope Use

As per the OpenAI models,

Any deployed use case of the model - whether commercial or not - is currently out of scope. Non-deployed use cases such as image search in a constrained environment, are also not recommended unless there is thorough in-domain testing of the model with a specific, fixed class taxonomy. This is because our safety assessment demonstrated a high need for task specific testing especially given the variability of CLIP’s performance with different class taxonomies. This makes untested and unconstrained deployment of the model in any use case currently potentially harmful.

Certain use cases which would fall under the domain of surveillance and facial recognition are always out-of-scope regardless of performance of the model. This is because the use of artificial intelligence for tasks such as these can be premature currently given the lack of testing norms and checks to ensure its fair use.

Since the model has not been purposefully trained in or evaluated on any languages other than English, its use should be limited to English language use cases.

Further the above notice, the LAION-5B dataset used in training of these models has additional considerations, see below.

Training Details

Training Data

This model was trained with LAION-2B -- A 2 billion sample English subset of LAION-5B (https://laion.ai/blog/laion-5b/).

IMPORTANT NOTE: The motivation behind dataset creation is to democratize research and experimentation around large-scale multi-modal model training and handling of uncurated, large-scale datasets crawled from publically available internet. Our recommendation is therefore to use the dataset for research purposes. Be aware that this large-scale dataset is uncurated. Keep in mind that the uncurated nature of the dataset means that collected links may lead to strongly discomforting and disturbing content for a human viewer. Therefore, please use the demo links with caution and at your own risk. It is possible to extract a “safe” subset by filtering out samples based on the safety tags (using a customized trained NSFW classifier that we built). While this strongly reduces the chance for encountering potentially harmful content when viewing, we cannot entirely exclude the possibility for harmful content being still present in safe mode, so that the warning holds also there. We think that providing the dataset openly to broad research and other interested communities will allow for transparent investigation of benefits that come along with training large-scale models as well as pitfalls and dangers that may stay unreported or unnoticed when working with closed large datasets that remain restricted to a small community. Providing our dataset openly, we however do not recommend using it for creating ready-to-go industrial products, as the basic research about general properties and safety of such large-scale models, which we would like to encourage with this release, is still in progress.

Training Procedure

The main training run was done at global batch size of 81920 for 256 checkpoint intervals of 135.6M samples for a total of ~34B samples seen over training.

Many difficulties w/ both model numerical stability and cluster stability and performance were encountered while training this model. Initial attempts to train with float16 AMP and default adam beta2 resulted in loss spikes and eventually NaN blow ups. beta2 was reduced to 0.97 which helped, but the loss / zs curves were not tracking as expected. After switching to PyTorch nightlies, it was possible to use bfloat16 + AMP for training (as with rececnt H/14, g/14, and G/14 models), beta2 was returned to 0.98 and metrics improved.

Checkpoint Interval Cluster # GPUs # Nodes GPU local BS sample/s sample/s/gpu precision adam beta2
1 - 2 Stability 1024 128 A100 40GB 80 37-40k 36-39 amp + fp16 0.97
3 - 32 Stability 512 64 A100 80GB 160 27-32k 52-62 amp + fp16 0.97
33 - 75 Booster 1024 256 A100 40GB 80 48k 47 amp + fp16 0.97
76 - 165 Booster 1024 256 A100 40GB 80 51k 50 amp + bf16 0.98
166 - 232 Stability 320 40 A100 80GB 256 18-19k 56-59 amp + bf16 0.98
233 - 249 Booster 1024 256 A100 40GB 80 51k 50 amp + bf16 0.98
250 - 256 Stability 1024 128 A100 40GB 80 27-31k 26-30 amp + bf16 0.98

JUWELS Booster has 4x A100 GPU per node w/ 4x HDR-200 IB adapters per node (200Gbit/sec per GPU). Stability setup used was 8x A100 GPU per node w/ 400Gbit/sec EFA networking per node (50 GBit/sec per GPU). Significant variation in training efficiency (throughput per GPU) as observed across the various configurations. The 1024 GPU configurations across both clusters were particularly prone to crashing (or very difficult to get running w/ a 'good' set of GPUs).

A slurm srun command line below for a 128 8-GPU (40GB A100) configuration:

srun --cpu_bind=v --accel-bind=gn python -m training.main \
    --save-frequency 1 \
    --name "xxlarge-2b-81920-bf16" \
    --resume "latest" \
    --logs "/runs" \
    --log-every-n-steps 50 \
    --train-data="pipe:aws s3 cp s3://laion5b/laion2B-data/{000000..231349}.tar -" \
    --train-num-samples 135646078 \
    --dataset-type webdataset \
    --warmup 10000 \
    --batch-size=80 \
    --epochs=256 \
    --dataset-resampled \
    --aug-cfg use_timm=True scale='(0.33, 1.0)' re_prob=0.35 \
    --precision amp_bfloat16 \
    --grad-clip-norm 5.0 \
    --lr 1e-3 \
    --workers=6 \
    --beta2 0.98 \
    --model "convnext_xxlarge" \
    --seed 0 \
    --ddp-static-graph \
    --local-loss \
    --gather-with-grad \
    --grad-checkpointing \
    --report-to "tensorboard"

For the rewind of last 10%, a higher global batch size of 95744 was used w/ a higher LR and slightly increased augmentation strength.

Checkpoint Interval Cluster # GPUs # Nodes GPU local BS sample/s sample/s/gpu precision adam beta2
231 - 256 stability 1088 136 A100 40GB 88 32-35k 29-32 amp + bf16 0.98

The slurm srun command line for 136 8-GPU (40GB A100) nodes:

srun --cpu_bind=v --accel-bind=gn python -m training.main \
    --save-frequency 1 \
    --name "xxlarge-2b-81920-r-bf16" \
    --resume "latest" \
    --logs "/runs" \
    --log-every-n-steps 50 \
    --train-data="pipe:aws s3 cp s3://laion5b/laion2B-data/{000000..231349}.tar -" \
    --train-num-samples 135646078 \
    --dataset-type webdataset \
    --warmup 10000 \
    --batch-size=88 \
    --epochs=256 \
    --dataset-resampled \
    --aug-cfg use_timm=True scale='(0.3, 1.0)' re_prob=0.4 \
    --precision amp_bfloat16 \
    --grad-clip-norm 5.0 \
    --lr 2e-3 \
    --workers=6 \
    --beta2 0.98 \
    --model "convnext_xxlarge" \
    --seed 0 \
    --ddp-static-graph \
    --local-loss \
    --gather-with-grad \
    --grad-checkpointing \
    --report-to "tensorboard"

Evaluation

Evaluation done with code in the LAION CLIP Benchmark suite.

Testing Data, Factors & Metrics

Testing Data

The testing is performed with VTAB+ (A combination of VTAB (https://arxiv.org/abs/1910.04867) w/ additional robustness datasets) for classification and COCO and Flickr for retrieval.

Results

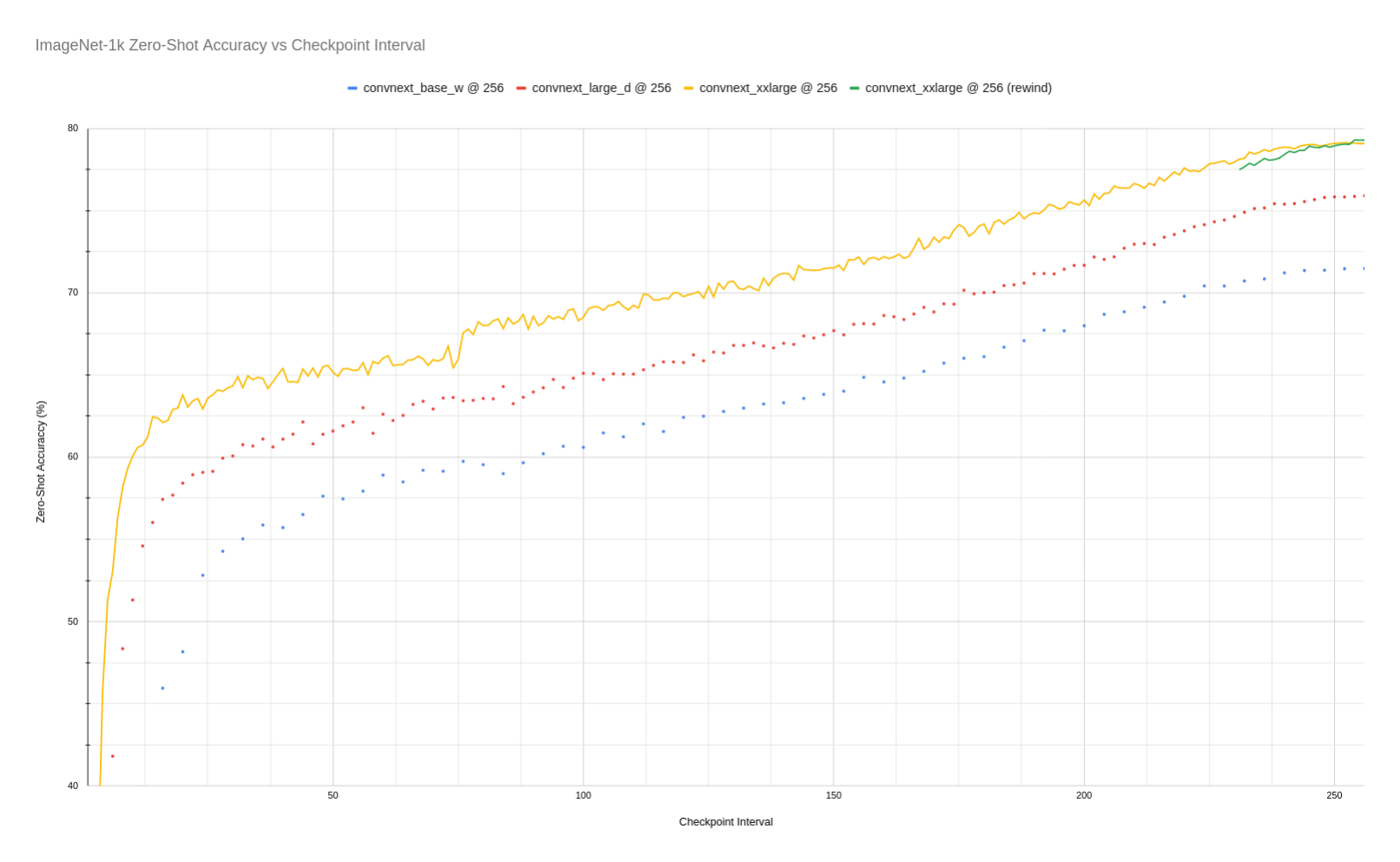

These models achieve between 79.1 and 79.4 top-1 zero-shot accuracy on ImageNet-1k.

A zoom-in on final 10% w/ rewind:

An initial round of benchmarks have been performed on a wider range of datasets, to be viewable at https://github.com/LAION-AI/CLIP_benchmark/blob/main/benchmark/results.ipynb

Acknowledgements

Acknowledging stability.ai and the Gauss Centre for Supercomputing e.V. (http://gauss-centre.eu) for funding this part of work by providing computing time through the John von Neumann Institute for Computing (NIC) on the GCS Supercomputer JUWELS Booster at Jülich Supercomputing Centre (JSC).

Citation

BibTeX:

LAION-5B

@inproceedings{schuhmann2022laionb,
  title={{LAION}-5B: An open large-scale dataset for training next generation image-text models},
  author={Christoph Schuhmann and
          Romain Beaumont and
          Richard Vencu and
          Cade W Gordon and
          Ross Wightman and
          Mehdi Cherti and
          Theo Coombes and
          Aarush Katta and
          Clayton Mullis and
          Mitchell Wortsman and
          Patrick Schramowski and
          Srivatsa R Kundurthy and
          Katherine Crowson and
          Ludwig Schmidt and
          Robert Kaczmarczyk and
          Jenia Jitsev},
  booktitle={Thirty-sixth Conference on Neural Information Processing Systems Datasets and Benchmarks Track},
  year={2022},
  url={https://openreview.net/forum?id=M3Y74vmsMcY}
}

OpenCLIP software

@software{ilharco_gabriel_2021_5143773,
  author       = {Ilharco, Gabriel and
                  Wortsman, Mitchell and
                  Wightman, Ross and
                  Gordon, Cade and
                  Carlini, Nicholas and
                  Taori, Rohan and
                  Dave, Achal and
                  Shankar, Vaishaal and
                  Namkoong, Hongseok and
                  Miller, John and
                  Hajishirzi, Hannaneh and
                  Farhadi, Ali and
                  Schmidt, Ludwig},
  title        = {OpenCLIP},
  month        = jul,
  year         = 2021,
  note         = {If you use this software, please cite it as below.},
  publisher    = {Zenodo},
  version      = {0.1},
  doi          = {10.5281/zenodo.5143773},
  url          = {https://doi.org/10.5281/zenodo.5143773}
}

OpenAI CLIP paper

@inproceedings{Radford2021LearningTV,
  title={Learning Transferable Visual Models From Natural Language Supervision},
  author={Alec Radford and Jong Wook Kim and Chris Hallacy and A. Ramesh and Gabriel Goh and Sandhini Agarwal and Girish Sastry and Amanda Askell and Pamela Mishkin and Jack Clark and Gretchen Krueger and Ilya Sutskever},
  booktitle={ICML},
  year={2021}
}
@Article{liu2022convnet,
  author  = {Zhuang Liu and Hanzi Mao and Chao-Yuan Wu and Christoph Feichtenhofer and Trevor Darrell and Saining Xie},
  title   = {A ConvNet for the 2020s},
  journal = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
  year    = {2022},
}
@misc{rw2019timm,
  author = {Ross Wightman},
  title = {PyTorch Image Models},
  year = {2019},
  publisher = {GitHub},
  journal = {GitHub repository},
  doi = {10.5281/zenodo.4414861},
  howpublished = {\url{https://github.com/rwightman/pytorch-image-models}}
}
@InProceedings{pmlr-v162-wortsman22a,
  title = 	 {Model soups: averaging weights of multiple fine-tuned models improves accuracy without increasing inference time},
  author =       {Wortsman, Mitchell and Ilharco, Gabriel and Gadre, Samir Ya and Roelofs, Rebecca and Gontijo-Lopes, Raphael and Morcos, Ari S and Namkoong, Hongseok and Farhadi, Ali and Carmon, Yair and Kornblith, Simon and Schmidt, Ludwig},
  booktitle = 	 {Proceedings of the 39th International Conference on Machine Learning},
  pages = 	 {23965--23998},
  year = 	 {2022},
  editor = 	 {Chaudhuri, Kamalika and Jegelka, Stefanie and Song, Le and Szepesvari, Csaba and Niu, Gang and Sabato, Sivan},
  volume = 	 {162},
  series = 	 {Proceedings of Machine Learning Research},
  month = 	 {17--23 Jul},
  publisher =    {PMLR},
  pdf = 	 {https://proceedings.mlr.press/v162/wortsman22a/wortsman22a.pdf},
  url = 	 {https://proceedings.mlr.press/v162/wortsman22a.html}
}
